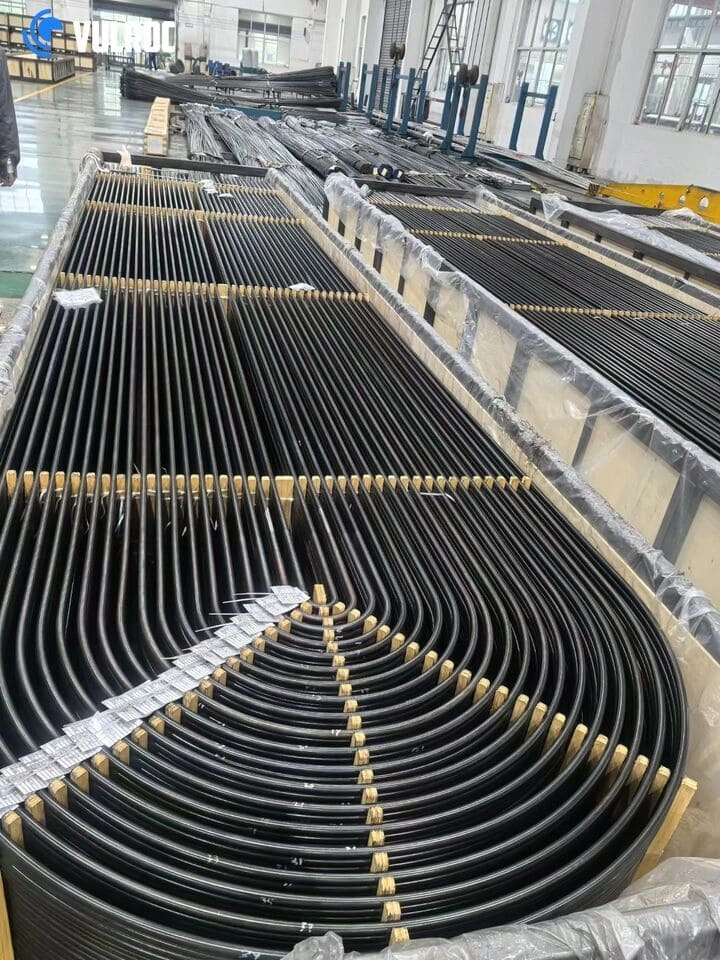

Manufactured from high-quality carbon steel seamless tubes, the U-bending process is performed using precision-controlled equipment to achieve tight bending radii with minimal wall thinning. All bends are stress relieved in accordance with TEMA requirements to reduce residual stress and ensure long-term reliability in demanding operating conditions.
These tubes are widely used across power generation, petrochemical, and industrial processing industries, including:
- Shell & tube heat exchangers
- Power plant condensers and boilers
- Economizers and superheaters
- Petrochemical heat exchangers
- Refinery process heaters
- Industrial cooling systems
- Pressure vessel heat transfer equipment
- HVAC and thermal processing equipment
FAQ
1. What are carbon steel seamless U-bend tubes?
Carbon steel seamless U-bend tubes are straight seamless tubes that are precision bent into a U shape for use in heat exchangers, boilers, and condensers. The U-bend design allows thermal expansion, reduces the need for fittings, and improves reliability in high-pressure and high-temperature applications.
2. What are U-bend tubes used for?
U-bend tubes are commonly used in shell and tube heat exchangers, power plant boilers, condensers, economizers, and petrochemical equipment. They are ideal where compact design, efficient heat transfer, and thermal expansion flexibility are required.
3. Why use seamless U-bend tubes instead of welded tubes?
Seamless U-bend tubes provide better pressure resistance, improved mechanical strength, and higher reliability. Without a weld seam, they reduce the risk of leakage and failure, especially in high-temperature and high-pressure heat exchanger applications.
4. What is the minimum bending radius for U-bend tubes?
The bending radius typically ranges from 1.5 times the tube outside diameter (1.5D) and above, depending on material grade, wall thickness, and application requirements. Precision bending equipment ensures minimal wall thinning and ovality.
5. Is heat treatment required after U-bending?
Yes. Stress relieving heat treatment is normally performed after bending according to TEMA requirements. This removes residual stresses, improves mechanical properties, and ensures long-term performance in heat exchanger service.
6. What standards are available for carbon steel U-bend tubes?
Carbon steel U-bend tubes can be supplied according to ASTM A179, A192, A210, A209, and equivalent ASME, EN, DIN, JIS, and BS standards. TEMA tolerances and IBR certification are also available upon request.
7. What inspections are performed on U-bend tubes?
Common inspections include dimensional inspection, visual inspection, ovality check, wall thinning measurement, hydrostatic testing, eddy current testing, ultrasonic testing, and PMI testing if required.
8. What industries use carbon steel U-bend tubes?
Typical industries include power generation, petrochemical, refinery, chemical processing, HVAC, and industrial heat exchanger manufacturing. These tubes are widely used in high-pressure thermal equipment.
