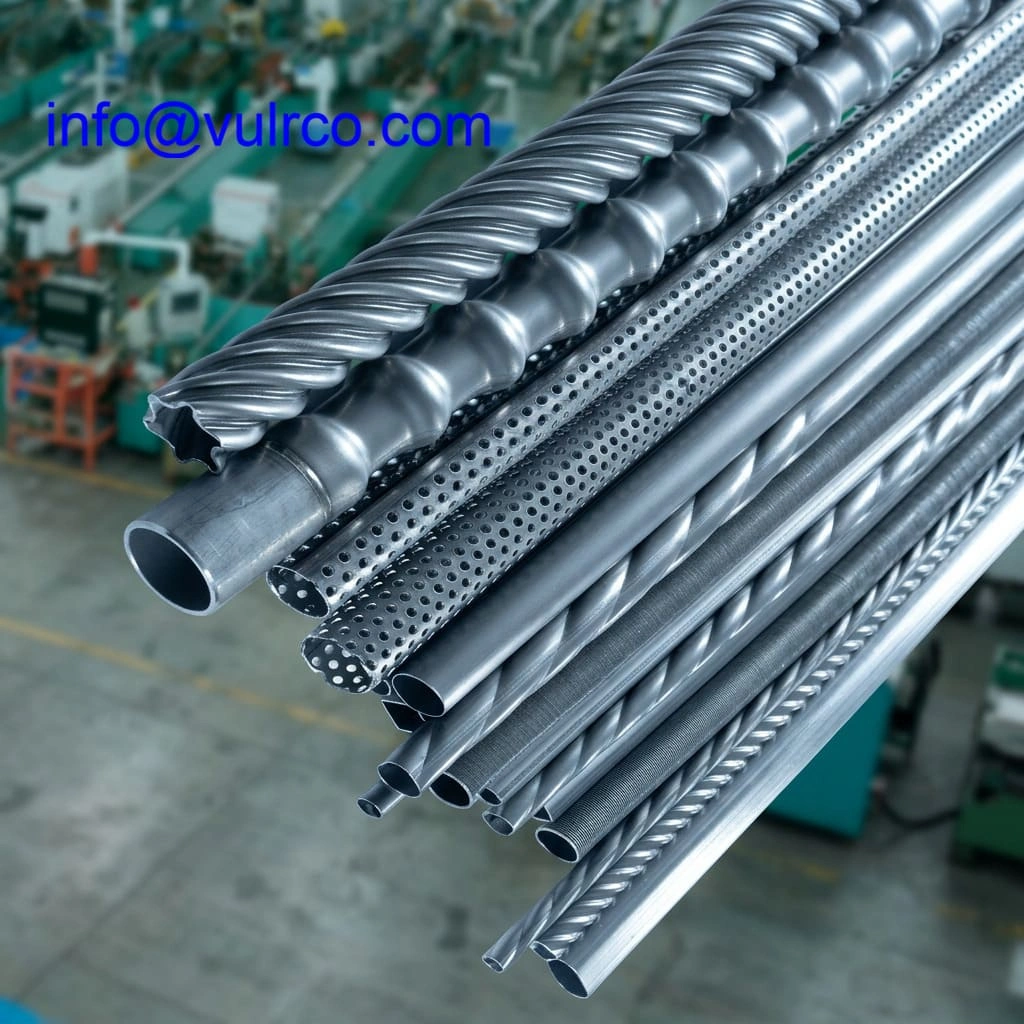

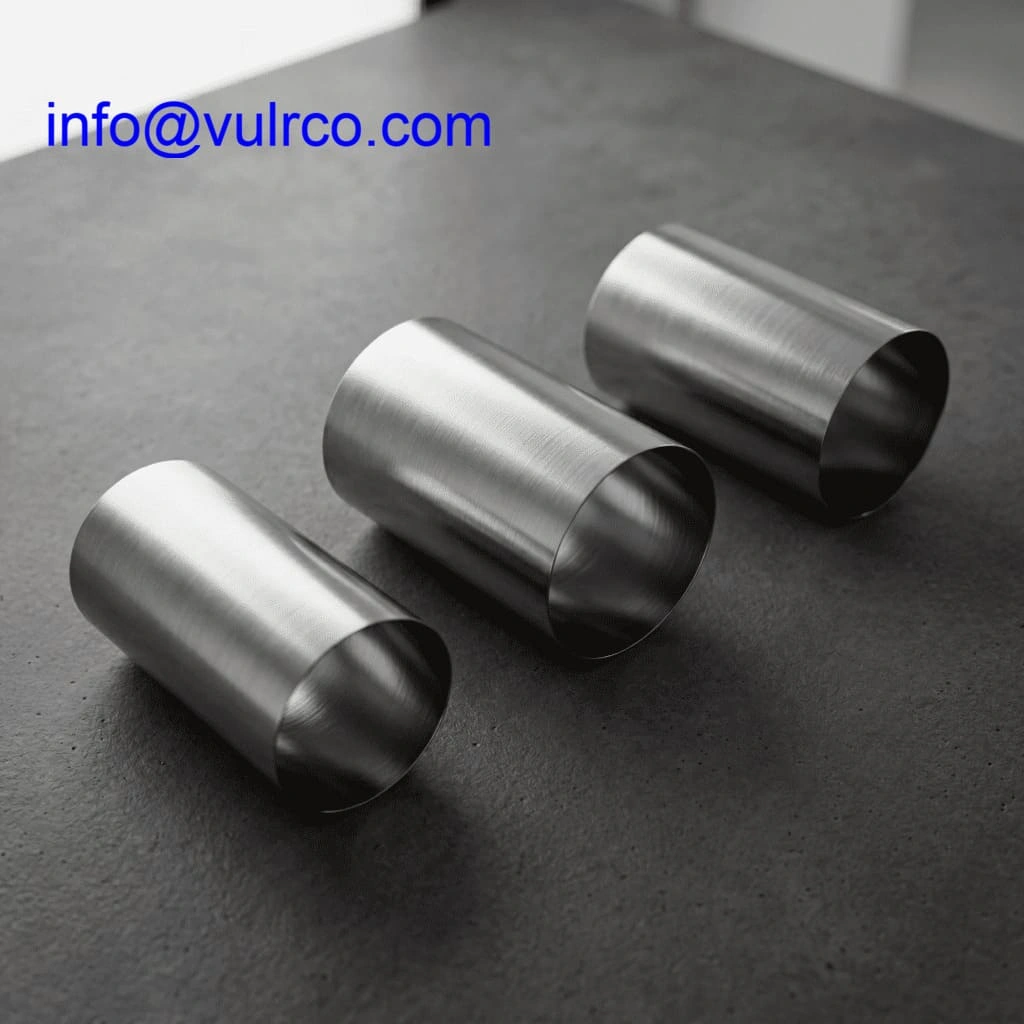

Welded Titanium Tubes

Cost-Effective Alternative to Seamless Titanium Tubes

Welded titanium tubes provide an excellent combination of corrosion resistance, mechanical performance, and cost efficiency. With advanced welding technology, welded titanium tubing now offers reliable weld integrity, uniform wall thickness, and excellent surface quality, making it a practical alternative to seamless titanium tubes in many applications.

Vulroc Tube manufactures high-quality welded titanium tubes widely used in heat exchangers, condensers, marine equipment, chemical processing, and HVAC systems.





Key Advantages

Lower Cost. Reliable Performance. Wide Applications.

  • Much lower cost than seamless titanium tubes
  • Advanced welding technology
  • Excellent weld seam quality
  • Uniform wall thickness
  • Good dimensional accuracy
  • Smooth inner surface
  • Suitable for heat exchanger applications
  • Available in long lengths
  • Fast delivery time

Welded Titanium Tubes vs Seamless Titanium Tubes

Item Welded Titanium Tubes Seamless Titanium Tubes
Cost Lower Higher
Wall Thickness Uniform Less uniform
Availability Better Limited
Large Length Easier Limited
Heat Exchanger Use Excellent Excellent
Delivery Time Faster Longer

With improved welding technology, welded titanium tubes are now widely used to replace seamless titanium tubes in many heat transfer applications.

Technical Specifications

Parameter Range
Outer Diameter 6 mm – 76.2 mm
Wall Thickness 0.5 mm – 3 mm
Length Up to 18,000 mm
Surface Pickled / Bright
Manufacturing TIG / Laser Welded
Standard ASTM B338 / ASTM B861


Product Types

  • Welded Titanium Tubes
  • Welded Titanium Heat Exchanger Tubes
  • Welded Titanium Condenser Tubes
  • Thin Wall Welded Titanium Tubes
  • Welded Titanium U Bend Tubes
  • Welded Titanium Coil Tubes
  • Titanium Welded Precision Tubes

Available Materials

  • Titanium Grade 1
  • Titanium Grade 2

Inspection & Testing

  • Eddy current testing
  • Ultrasonic testing
  • Weld seam inspection
  • Dimensional inspection
  • Mechanical properties test
  • Chemical composition test

Why Choose Vulroc Welded Titanium Tubes

  • Advanced titanium welding technology
  • Reliable weld seam quality
  • Cost-effective solution
  • Suitable for heat exchangers
  • Smooth ID surface
  • Custom sizes available
  • Fast delivery
  • Export worldwide

Packaging

  • Wooden case packing
  • Plastic caps protection
  • PE film wrapping
  • Export standard packing
  • Custom packaging available

Applications

Welded titanium tubes are widely used in:

Heat Exchangers

  • Shell and tube heat exchangers
  • Titanium tube heat exchangers
  • Coil heat exchangers
  • Seawater heat exchangers

Condensers

  • Surface condensers
  • Seawater condensers
  • Industrial condensers

Marine Industry

  • Seawater cooling systems
  • Shipbuilding equipment
  • Offshore equipment

Chemical Industry

  • Corrosion resistant piping
  • Acid cooling systems
  • Process equipment

HVAC & Refrigeration

  • Chillers
  • Heat pumps
  • Cooling systems

FAQ

Are welded titanium tubes reliable?
Yes, with advanced welding technology, welded titanium tubes provide reliable performance.

Can welded titanium tubes replace seamless?
Yes, in many heat exchanger applications welded titanium tubes replace seamless tubes.

What is the cost difference?
Welded titanium tubes are significantly cheaper than seamless titanium tubes.

Which grade is most common?
Grade 2 titanium is most widely used.

Do you provide U bend welded titanium tubes?
Yes, U bend welded titanium tubes are available.
